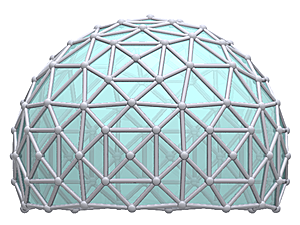

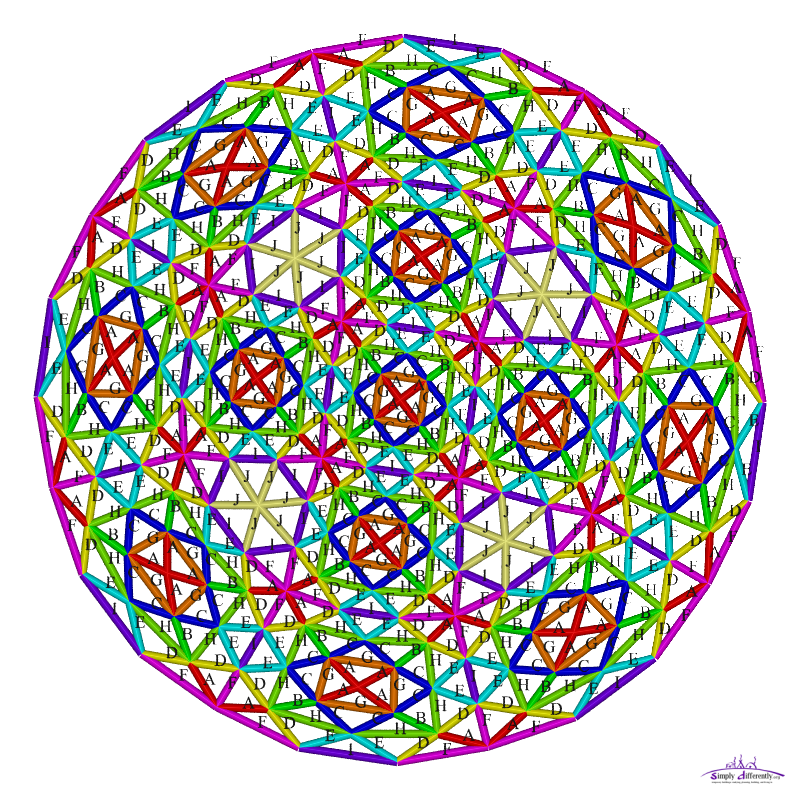

Home   ·   About   ·   Tipi   ·   Yurt / Ger   ·   Dome   ·   Features   ·   Gallery About Overview License Tipi Overview Tipi Diary Yurt / Ger Overview Yurt Notes & Calculator Yurt / Ger Diary Yurt Builder Conference Living Notes Material Notes Dome Overview Geodesic Dome Geodesic Dome Notes & Calculator Geodesic Dome Diary Geodesic Polyhedra Polyhedra Notes Bow Dome Triangulated Bow Dome Star Dome Star Dome Diary Wigwam Zome Helix Zome Low Cost Dome (PVC) Miscellaneous Domes Features Overview Chris Aeppli Claudius Kern René K. Müller Geodesic Solitude Johnny's Capsule Geodesic Clay Mud Dome Jurtendorf (Switzerland) Neolithics of Pfyn Strawbale Cabin Dome Geodesic Dome Geodesic Dome Notes & Calculator Table of Content Introduction Overview of Variants How to Use the Notes Strut Options & Notion The Icosahedron The Octahedron The Cube The Cuboctahedron The Truncated Octahedron The Rhombicuboctahedron Building Models Real Life Application Links Geodesic Dome Diary Geodesic Polyhedra Polyhedra Notes Bow Dome Triangulated Bow Dome Star Dome Star Dome Diary Wigwam Zome Helix Zome Low Cost Dome (PVC) Miscellaneous Domes Site Search Enter term & press ENTER If you found the information useful, consider to make a donation:   Page << Prev | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | Next >> Geodesic Dome Notes & Calculator written by Rene K. Mueller, Copyright (c) 2005, 2006, 2007, last updated Tue, January 29, 2019 The Rhombicuboctahedron Rhombicuboctahedron Uniform Polyhedron: U10 aka Small Rhombicuboctahedron Archimedean Solid: A6 Vertices: 24 Edges: 48 Faces: 26 Wythoff symbol: 3 4|2 Symmetry Group: octahedral Vertex Configuration: {4, 3, 4, 4} Dual: deltoidal icositetrahedron V: s3 / 3 * (12 + 10 * √2) A: s2 * (18 + 2 * √3) rinner: s / 17 * (6 + √2) * √(5 + 2 * √2) router: s / 2 * √(5 + 2 * √2) s = , V = , A = , rinner = , router = , ravg = Preparing the Rhombicuboctahedron Rhombicuboctahedron L0/0V (original) Rhombicuboctahedron L1/1V flat (only triangles & flat) Rhombicuboctahedron L1/1V (only triangles & normalized) The squares are triangulated for further processing. 1V/L1 3/8 Rhombicuboctahedron Dome Geodesic 1V 3/8 Rhombicuboctahedron Dome (front view) Geodesic 1V 3/8 Rhombicuboctahedron Dome (bird view) vertices/connectors: 17 13 x 4-way 4 x 7-way 1V 3/8 Rhombicuboctahedron Dome Construction Map edges/struts & bending angles (αstrut): A x 20: 0.52372 (15.18°) B x 20: 0.71481 (20.94°) total 40 struts (2 kinds)1) strut variance 36.5% faces: 24 (3-sided) A-A-B x 20 (46.96°, 46.96°, 86.07°) B-B-B x 4 (60.00°, 60.00°, 60.00°) 2 kinds of faces2) diameter: 2.000, radius: 1.000 height: 0.643 or 32.14% of diameter 1) strut lengths sorted by 1/10'000th or +/-0.00005 exact 2) clock wise (cw) and counter clock wise (ccw) orientation neglected 1V 3/8 Rhombicuboctahedron Dome Calculator Geodesic 1V 3/8 Rhombicuboctahedron Dome (Human is 170cm/5'7") d = , lhole = (Edit numbers & hit TAB to recalculate) Alath = x 20, Blath = x 20, h = 1V/L1 5/8 Rhombicuboctahedron Dome Geodesic 1V 5/8 Rhombicuboctahedron Dome (front view) Geodesic 1V 5/8 Rhombicuboctahedron Dome (bird view) vertices/connectors: 33 13 x 4-way 8 x 5-way 12 x 7-way 1V 5/8 Rhombicuboctahedron Dome Construction Map edges/struts & bending angles (αstrut): A x 52: 0.52372 (15.18°) B x 36: 0.71481 (20.94°) total 88 struts (2 kinds)1) strut variance 36.5% faces: 56 (3-sided) A-A-B x 52 (46.96°, 46.96°, 86.07°) B-B-B x 4 (60.00°, 60.00°, 60.00°) 2 kinds of faces2) diameter: 2.000, radius: 1.000 height: 1.358 or 67.88% of diameter 1) strut lengths sorted by 1/10'000th or +/-0.00005 exact 2) clock wise (cw) and counter clock wise (ccw) orientation neglected 1V 5/8 Rhombicuboctahedron Dome Calculator Geodesic 1V 5/8 Rhombicuboctahedron Dome (Human is 170cm/5'7") d = , lhole = (Edit numbers & hit TAB to recalculate) Alath = x 52, Blath = x 36, h = This is a nice variant, with square walls, optionally instead of square triangulation either replaced by one strut (B * √2) or leave it out at all. The vertical struts of the vertical wall make it look very artistic, yet also edgy, but given it's a 1V it's understandable. With only 88 struts you get a 5/8 sphere. At d = 6m the height is apprx. 4m and a 2nd level can be done at 2m height, just at the level of existing connectors. 2V/L2 3/8 Rhombicuboctahedron Dome Geodesic 2V 3/8 Rhombicuboctahedron Dome (front view) Geodesic 2V 3/8 Rhombicuboctahedron Dome (bird view) vertices/connectors: 57 21 x 4-way 32 x 6-way 4 x 7-way 2V 3/8 Rhombicuboctahedron Dome Construction Map edges/struts & bending angles (αstrut): A x 40: 0.26418 (7.59°) B x 40: 0.27386 (7.87°) C x 40: 0.36346 (10.47°) D x 20: 0.37033 (10.67°) E x 12: 0.38268 (11.03°) total 152 struts (5 kinds)1) strut variance 44.9% faces: 96 (3-sided) A-A-D x 20 (45.51°, 45.51°, 88.98°) A-B-C x 40 (46.39°, 48.64°, 84.97°) B-B-D x 20 (47.47°, 47.47°, 85.06°) C-C-E x 12 (58.24°, 58.24°, 63.53°) E-E-E x 4 (60.00°, 60.00°, 60.00°) 5 kinds of faces2) diameter: 2.000, radius: 1.000 height: 0.643 or 32.14% of diameter 1) strut lengths sorted by 1/10'000th or +/-0.00005 exact 2) clock wise (cw) and counter clock wise (ccw) orientation neglected 2V 3/8 Rhombicuboctahedron Dome Calculator Geodesic 2V 3/8 Rhombicuboctahedron Dome (Human is 170cm/5'7") d = , lhole = (Edit numbers & hit TAB to recalculate) Alath = x 40, Blath = x 40, Clath = x 40, Dlath = x 20, Elath = x 12, h = 2V/L2 5/8 Rhombicuboctahedron Dome Geodesic 2V 5/8 Rhombicuboctahedron Dome (front view) Geodesic 2V 5/8 Rhombicuboctahedron Dome (bird view) vertices/connectors: 121 21 x 4-way 8 x 5-way 80 x 6-way 12 x 7-way 2V 5/8 Rhombicuboctahedron Dome Construction Map edges/struts & bending angles (αstrut): A x 104: 0.26418 (7.59°) B x 104: 0.27386 (7.87°) C x 72: 0.36346 (10.47°) D x 52: 0.37033 (10.67°) E x 12: 0.38268 (11.03°) total 344 struts (5 kinds)1) strut variance 44.9% faces: 224 (3-sided) A-A-D x 52 (45.51°, 45.51°, 88.98°) A-B-C x 104 (46.39°, 48.64°, 84.97°) B-B-D x 52 (47.47°, 47.47°, 85.06°) C-C-E x 12 (58.24°, 58.24°, 63.53°) E-E-E x 4 (60.00°, 60.00°, 60.00°) 5 kinds of faces2) diameter: 2.000, radius: 1.000 height: 1.383 or 69.14% of diameter 1) strut lengths sorted by 1/10'000th or +/-0.00005 exact 2) clock wise (cw) and counter clock wise (ccw) orientation neglected 2V 5/8 Rhombicuboctahedron Dome Calculator Geodesic 2V 5/8 Rhombicuboctahedron Dome (Human is 170cm/5'7") d = , lhole = (Edit numbers & hit TAB to recalculate) Alath = x 104, Blath = x 104, Clath = x 72, Dlath = x 52, Elath = x 12, h = This is also a nice variant, alike the 1V 5/8 one. Multiple squares in a spherical setting, a nice crossover of rectangular to circular/spherical space. With 344 struts still considerable for temporary buildings. 3V 3/8 Rhombicuboctahedron Dome Geodesic 3V 3/8 Rhombicuboctahedron Dome (front view) Geodesic 3V 3/8 Rhombicuboctahedron Dome (bird view) vertices/connectors: 121 29 x 4-way 88 x 6-way 4 x 7-way 3V 3/8 Rhombicuboctahedron Dome Construction Map edges/struts & bending angles (αstrut): A x 40: 0.17453 (5.01°) B x 20: 0.18015 (5.17°) C x 40: 0.18031 (5.17°) D x 40: 0.18048 (5.18°) E x 40: 0.18562 (5.33°) F x 40: 0.23805 (6.84°) G x 20: 0.24588 (7.06°) H x 40: 0.24779 (7.12°) I x 32: 0.25307 (7.27°) J x 24: 0.25516 (7.33°) total 336 struts (10 kinds)1) strut variance 46.2% faces: 216 (3-sided) A-A-G x 20 (45.20°, 45.20°, 89.59°) A-D-F x 40 (46.82°, 48.96°, 84.22°) B-C-H x 40 (46.56°, 46.59°, 86.85°) C-C-G x 20 (47.01°, 47.01°, 85.99°) D-E-H x 40 (46.54°, 48.28°, 85.19°) E-E-I x 20 (47.01°, 47.01°, 85.98°) F-F-I x 12 (57.89°, 57.89°, 64.21°) I-J-J x 24 (59.46°, 60.27°, 60.27°) 8 kinds of faces2) diameter: 2.000, radius: 1.000 height: 0.643 or 32.14% of diameter 1) strut lengths sorted by 1/10'000th or +/-0.00005 exact 2) clock wise (cw) and counter clock wise (ccw) orientation neglected 3V 3/8 Rhombicuboctahedron Dome Calculator Geodesic 3V 3/8 Rhombicuboctahedron Dome (Human is 170cm/5'7") d = , lhole = (Edit numbers & hit TAB to recalculate) Alath = x 40, Blath = x 20, Clath = x 40, Dlath = x 40, Elath = x 40, Flath = x 40, Glath = x 20, Hlath = x 40, Ilath = x 32, Jlath = x 24, h = 3V 5/8 Rhombicuboctahedron Dome Geodesic 3V 5/8 Rhombicuboctahedron Dome (front view) Geodesic 3V 5/8 Rhombicuboctahedron Dome (bird view) vertices/connectors: 265 29 x 4-way 8 x 5-way 216 x 6-way 12 x 7-way 3V 5/8 Rhombicuboctahedron Dome Construction Map edges/struts & bending angles (αstrut): A x 104: 0.17453 (5.01°) B x 52: 0.18015 (5.17°) C x 104: 0.18031 (5.17°) D x 104: 0.18048 (5.18°) E x 104: 0.18562 (5.33°) F x 72: 0.23805 (6.84°) G x 52: 0.24588 (7.06°) H x 104: 0.24779 (7.12°) I x 48: 0.25307 (7.27°) J x 24: 0.25516 (7.33°) total 768 struts (10 kinds)1) strut variance 46.2% faces: 504 (3-sided) A-A-G x 52 (45.20°, 45.20°, 89.59°) A-D-F x 104 (46.82°, 48.96°, 84.22°) B-C-H x 104 (46.56°, 46.59°, 86.85°) C-C-G x 52 (47.01°, 47.01°, 85.99°) D-E-H x 104 (46.54°, 48.28°, 85.19°) E-E-I x 52 (47.01°, 47.01°, 85.98°) F-F-I x 12 (57.89°, 57.89°, 64.21°) I-J-J x 24 (59.46°, 60.27°, 60.27°) 8 kinds of faces2) diameter: 2.000, radius: 1.000 height: 1.380 or 68.99% of diameter 1) strut lengths sorted by 1/10'000th or +/-0.00005 exact 2) clock wise (cw) and counter clock wise (ccw) orientation neglected 3V 5/8 Rhombicuboctahedron Dome Calculator Geodesic 3V 5/8 Rhombicuboctahedron Dome (Human is 170cm/5'7") d = , lhole = (Edit numbers & hit TAB to recalculate) Alath = x 104, Blath = x 52, Clath = x 104, Dlath = x 104, Elath = x 104, Flath = x 72, Glath = x 52, Hlath = x 104, Ilath = x 48, Jlath = x 24, h = Next Page >> Page << Prev | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | Next >> Content: Page 1: Table of Content, Changes Page 2: Introduction, Origin of the Geodesic Dome, Geodesize: Triangulate & Normalize, Procedure & Evolution of a Subdividing Triangle ... Page 3: Overview of Variants, Numerical Overview, Amount of Struts vs. Strut Variance, Amount of Struts vs. Strut Types ... Page 4: The Icosahedron, 1V/L1 2/3 Icosahedron Dome, 2V/L2 Icosahedron Dome, 3V 4/9 Icosahedron Dome ... Page 5: 5V 7/15 Icosahedron Dome, 5V 8/15 Icosahedron Dome, 6V Icosahedron Dome, 2V.3V Icosahedron Dome ... Page 6: 7V 10/21 Icosahedron Dome, 7V 11/21 Icosahedron Dome, 8V Icosahedron Dome, L4 Icosahedron Dome ... Page 7: The Octahedron, 1V/L1 Octahedron Dome, 2V/L2 Octahedron Dome, 3V Octahedron Dome Page 8: 4V Octahedron Dome, L3 Octahedron Dome, L3 1/4 Octahedron Dome, L3 5/8 Octahedron Dome Page 9: 5V Octahedron Dome, 6V Octahedron Dome, 2V.3V Octahedron Dome, 3V.2V Octahedron Dome Page 10: 7V Octahedron Dome, 8V Octahedron Dome, L4 Octahedron Dome, L4 7/16 Octahedron Dome, L4 9/16 Octahedron Dome ... Page 11: 9V Octahedron Dome, 3V.3V Octahedron Dome, 10V Octahedron Dome, 2V.5V Octahedron Dome, 2V.5V Octahedron Dome ... Page 12: The Cube, Preparing the Cube, 1V/L1 Cube Dome, 2V/L2 Cube Dome, 3V Cube Dome, 4V Cube Dome, L3 Cube Dome ... Page 13: 5V Cube Dome, 6V Cube Dome, 2V.3V Cube Dome, 3V.2V Cube Dome, 7V Cube Dome Page 14: The Cuboctahedron, Preparing the Cuboctahedron, 1V/L1 Cuboctahedron Dome, 2V/L2 Cuboctahedron Dome ... Page 15: 5V Cuboctahedron Dome, 6V Cuboctahedron Dome, 2V.3V Cuboctahedron Dome, 3V.2V Cuboctahedron Dome ... Page 16: The Truncated Octahedron, Preparing the Truncated Octahedron, 1V/L1 Truncated Octahedron Dome ... Page 17: The Rhombicuboctahedron, Preparing the Rhombicuboctahedron, 1V/L1 3/8 Rhombicuboctahedron Dome ... Page 18: Building Models, 3V 5/9 Icosahedron Model, 2V Icosahedron Model, 4V Icosahedron Model, 2V/L2 Cuboctahedron Model ... Page 19: Real Life Application, Options, Connectors, Separate Functions, Cover, 4/8 Sphere Cover Calculator ... Home   ·   About   ·   Tipi   ·   Yurt   ·   Dome   ·   Features   ·   Gallery Print   ·   Bookmark Creative Commons (CC) BY-SA-NC 2005-2017, developed, designed and written by René K. Müller Graphics & illustrations made with Inkscape, Tgif, Gimp, PovRay, GD.pm Web-Site powered by FreeBSD & Debian/Linux - 100% Open Source
